Ultralight 700C UD Carbon Spokes

/

22mm internal Carbon Spokes

/Ultra Lightweight 22mm inner UD Carbon Spokes Wheelset Race Pro 700C Road Bike

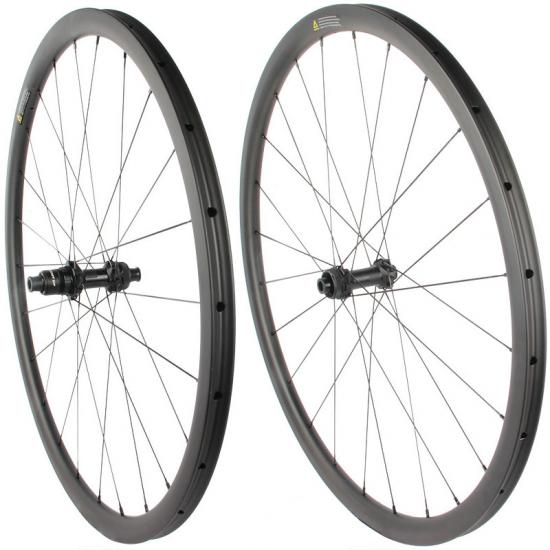

UD Carbon Spokes Wheelset
UD Carbon Spokes Wheelset UD Carbon Spokes Wheelset UD Carbon Spokes Wheelset UD Carbon Spokes Wheelset UD Carbon Spokes Wheelset UD Carbon Spokes Wheelset

Ultra Lightweight 22mm inner UD Carbon Spokes Wheelset Race Pro 700C Road Bike

● Ratchet 36T or 54T system optional

● Rim weave: UD Free paint

● 3.2mm width Flat UD carbon fibre spoke

● 30mm width, 22mm internal width

● 22/33/38/44/45/50/55/60/70mm depth optional

  • Payment:

    Paypal, Bank Transfer

  • Product Origin:

    China

  • Color:

    UD free paint

  • Brake:

    Disc Brake

  • Hole Count:

    F-20H / R-20H

  • Standard:

    EN Standard

  • Level:

    Top Racing
Inquiry now
  • Product Detail

DESCRIPTION


ORN728 CARBON WHEELS CLINCHER DISC BRAKE

The new ultra-light carbon spoke wheelset was designed with 3.2mm width UD flat carbon spokes, which made it more comprehensive.
Carbon spokes provide higher stiffness and better fatigue life, aero and light. UD carbon spokes are 30% stiffer than steel spokes.
Excellent design makes the rider more capable, lighter and more wind-breaking.

ORNANINC, an ultra-light carbon spoke wheelset, adopts the latest technology, which painting-free. The finished rim you see is the original appearance of carbon fiber, so that the visual effect is more stronger, and the painting-free process makes each wheel lighter.

In addition, The ultra-light carbon spoke wheelset not only adopts harder and lighter carbon spokes,but also provide excellent rigidity without affecting weight.

The widened internal width of 22mm ensures that you can drive smoothly in all kinds of road conditions, climbing slopes and flat conditions.

In this configuration, this ultra-light carbon spoke wheelset can bring the ultimate experience for cyclists.

UD carbon spokes wheels can be made with your customized logo (Laser Engraving Graphic logo or make Stickers on the rims or hubs).
So it will become your own brand hubs!



ORN728 CARBON WHEELS CLINCHER DISC BRAKE FEATURES:


- Custom laser engraving graphic

- Ultra-light carbon spoke wheelset

- Rim weave: UD free paint
- U shape design aerodynamic advantage
- Carbon 3.2mm width UD fibre spokes with excellent strength
- Compatible for 28C-71C tire (tubelees ready)

- Hub: ORNAN SD16-A hub, straight pull
- Freehub system: Ratchet 36T or 54T system available
- Bearing: S&S Ceramic bearing or TPI Ceramic bearing optional
- Cassette body: Shimano 11s/12s, Sram XDR and Campa N3W optional
- Axle system: Front 12x100mm, Rear 12x142mm
- Brake system: Disc center lock
- Spoke hole count: Fron 20H, Rear 20H
- Spoke: 3.2mm width flat UD carbon fibre spoke
- 2 years' quality warranty

SPECIFICATIONS


Model
 Pro-S2222
 Pro-S2233
 Pro-S2238
 Pro-S2244
 Pro-S2245
 Pro-S2250
 Pro-S2255
 Pro-S2260
 Pro-S2270
Cross Section








Sectional Drawing








Material T800 & T1000 T800 & T1000
 T800 & T1000 T800 & T1000
 T800 & T1000
 T800 & T1000
 T800 & T1000
 T800 & T1000
 T800 & T1000
Use Road Road Road Road
 Road
 Road
 Road Road Road
Type
 Clincher Clincher
 Clincher Clincher
 Clincher
 Clincher
 Clincher
 Clincher
 Clincher
Tubeless
 Ready Ready
 Ready Ready
 Ready
 Ready
 Ready
 Ready
 Ready
Internal/External Width
 22/30mm 22/30mm
 22/30mm 22/30mm
 22/30mm
 22/30mm
 22/30mm
 22/30mm
 22/30mm
Depth
 22mm 33mm 38mm 44mm 45mm
 50mm
 55mm
 60mm
 70mm
ERD
 601mm 579mm 569mm 557mm 555mm 545mm 535mm 525mm 505mm
Weight
 310+/-15g 335+/-15g 340+/-15g 355g+/-15g 355g+/-15g
 380g+/-15g
 400g+/-15g
 430g+/-15g
 480g+/-15g
Weight Limit
 90kg 90kg 90kg 90kg 90kg
 95kg
 95kg
 95kg
 95kg
Carbon Spoke Tension
 120 ~ 140kgf 120 ~ 140kgf 120 ~ 140kgf 120 ~ 140kgf 120 ~ 140kgf
 120 ~ 140kgf
 120 ~ 140kgf
 120 ~ 140kgf
 120 ~ 140kgf

Max Tire Pressure(with 25C)

110psi / 7.58bar 110psi / 7.58bar
 110psi / 7.58bar 110psi / 7.58bar
 110psi / 7.58bar
 110psi / 7.58bar
 110psi / 7.58bar
 110psi / 7.58bar
 110psi / 7.58bar
Tire Recommended
 28C ~ 71C 28C ~ 71C
 28C ~ 71C 28C ~ 71C 28C ~ 71C
 28C ~ 71C
 28C ~ 71C
 28C ~ 71C
 28C ~ 71C

UD CARBON SPOKES WHEELSET 700C DISC BRAKE WEIGHT


Model-Wheels
 Rim
 Depth
 Outer Width
 Hub
 Front Size
 Rear Size
 Spoke Weight (+/-3%)
Pro-S2222-SD16-A Pro-S2222 22mm 30mm SD16-A Road Disc 12 x 100mm 12 x 142mm UD Carbon Spokes 1025g
Pro-S2233-SD16-A
 Pro-S2233
 33mm 30mm SD16-A Road Disc
 12 x 100mm
 12 x 142mm
 UD Carbon Spokes
 1075g
Pro-S2238-SD16-A Pro-S2238 38mm 30mm SD16-A Road Disc 12 x 100mm 12 x 142mm UD Carbon Spokes 1085g
Pro-S2244-SD16-A Pro-S2244 44mm 30mm SD16-A Road Disc
 12 x 100mm 12 x 142mm UD Carbon Spokes 1115g
Pro-S2245-SD16-A
 Pro-S2245
 45mm 30mm SD16-A Road Disc
 12 x 100mm
 12 x 142mm
 UD Carbon Spokes
 1115g
Pro-S2250-SD16-A
 Pro-S2250
 50mm 30mm SD16-A Road Disc
 12 x 100mm
 12 x 142mm
 UD Carbon Spokes
 1165g
Pro-S2255-SD16-A
 Pro-S2255
 55mm 30mm SD16-A Road Disc
 12 x 100mm
 12 x 142mm
 UD Carbon Spokes
 1205g
Pro-S2260-SD16-A
 Pro-S2260
 60mm 30mm SD16-A Road Disc
 12 x 100mm
 12 x 142mm
 UD Carbon Spokes
 1265g
Pro-S2270-SD16-A
 Pro-S2270
 70mm 30mm SD16-A Road Disc
 12 x 100mm
 12 x 142mm
 UD Carbon Spokes
 1365g



Leave Message
If You Are Interested In Our Products And Want To Know More Details,Please Leave A Message Here,We Will Reply You As Soon As We Can.

RIMS FOR EVERY CONDITION

Related Products
700c superlight carbon Tri Spoke wheelset
700C Carbon Tri Spoke Wheelset For Road TT/Tri Racing
Ultra-lightweight 700C carbon tri spoke wheelset designed to be aerodynamic and provide fast and durable performance. clincher (tubeless ready), disc brake and rim brake versions optional.
Learn More
Carbon MTB Wheels 29
Best Carbon MTB 29er Wheelset Trail/AM/EN/DH Series
Hand-built series Trail, All Mountain, Down Hill, Enduro, quick-mannered, and completely innovative, carbon boost 29er wheelset with DT Swiss 180 Ratchet EXP 36 Ceramic Bearing hubs for the carbon bike, The ultimate in lightweight, stiffness and durability. Ideal bike wheels for the professional or racing cyclist.
Learn More
5 spoke carbon wheels folding 20 inch 451
2021 Best Carbon 5 Spoke Wheels 20 Inch 451 Folding Ride Carbon Wheelset 23mm Wide 38mm Deep
Hand-built carbon fiber 5 spoke wheel 20 inch 451 folding bicycle 23mm wide 38mm deep rim brake or disc brake carbon wheel.
Learn More

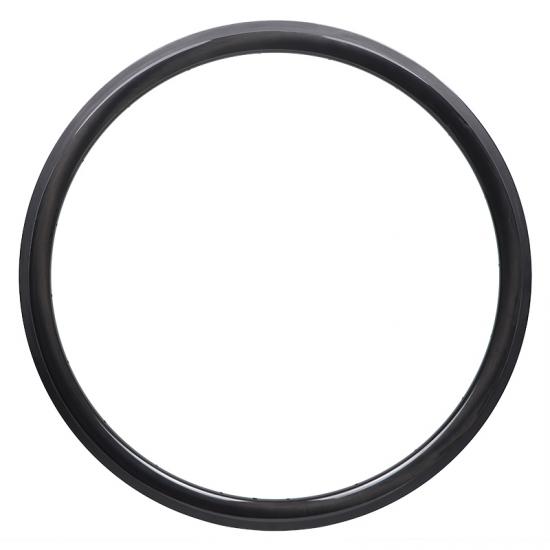

free paint UD Carbon 700C rims
