● Full internal cable routing
● Aerodynamic frame design
● Compatible with mechanical or DI2 groups
● Aero handlebar integrated with stem design (HBR06)
● EPS TECH helps to make smooth inner side of frame

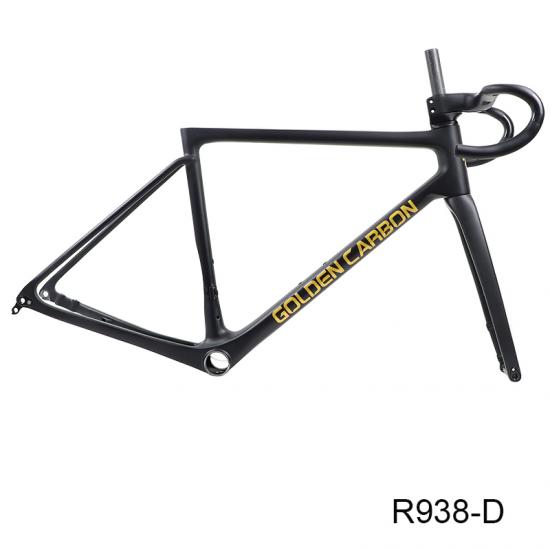

Item NO.:
ORNAN R938-DPayment:
Paypal, Bank TransferProduct Origin:
ChinaColor:
UD Matt (Customized Painting Acceptable)Product weight:
920+/-40g (Size 480mm)Brake:

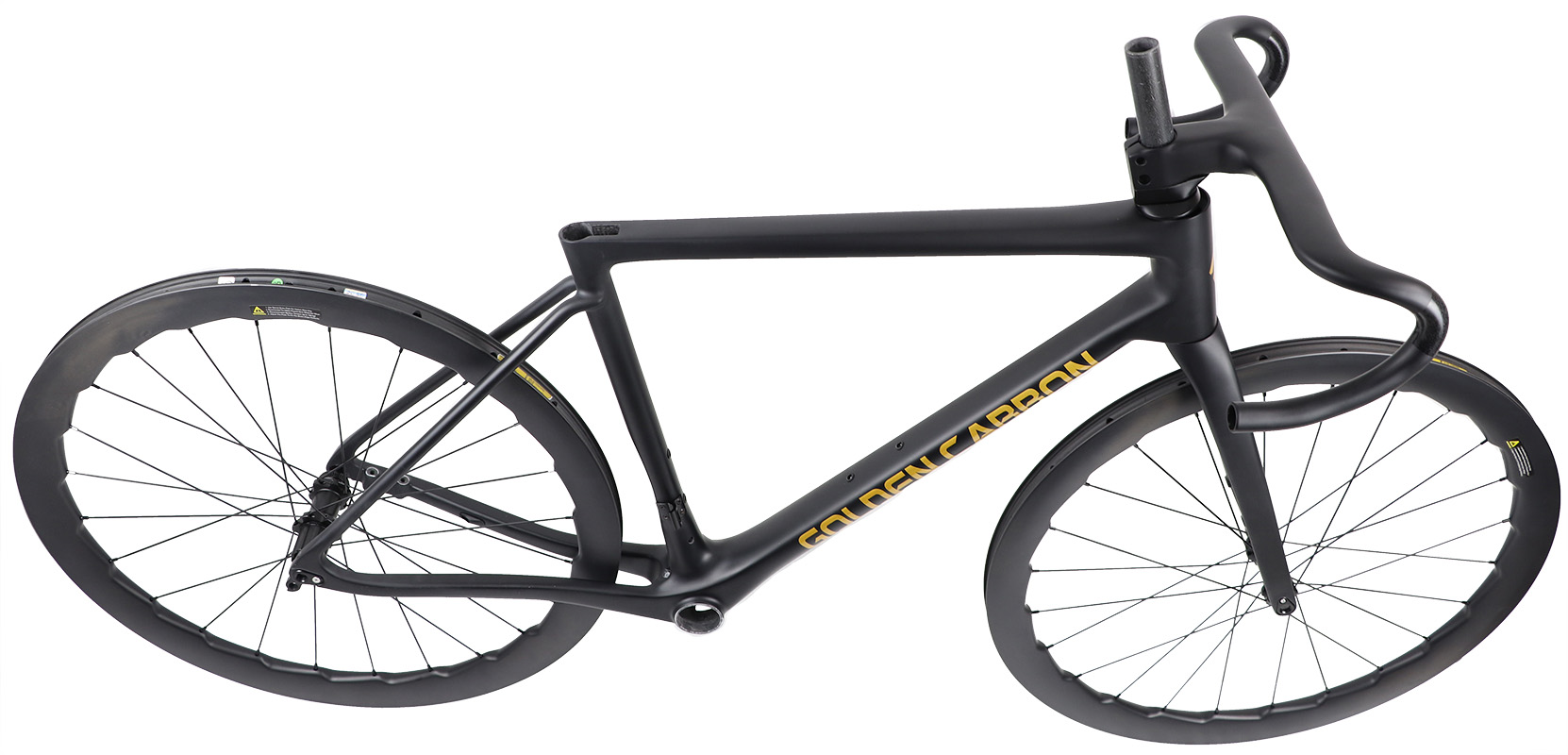

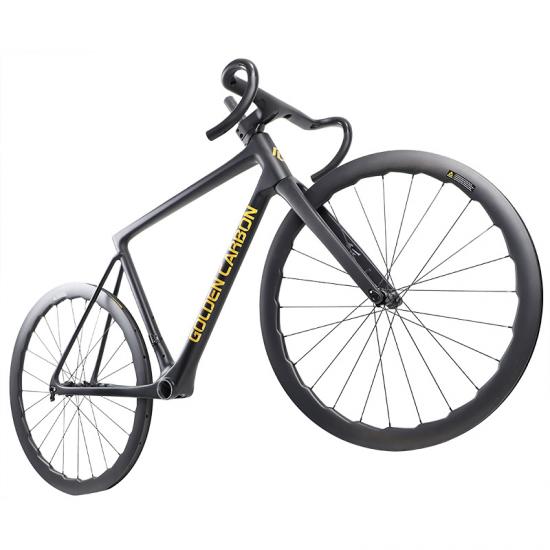

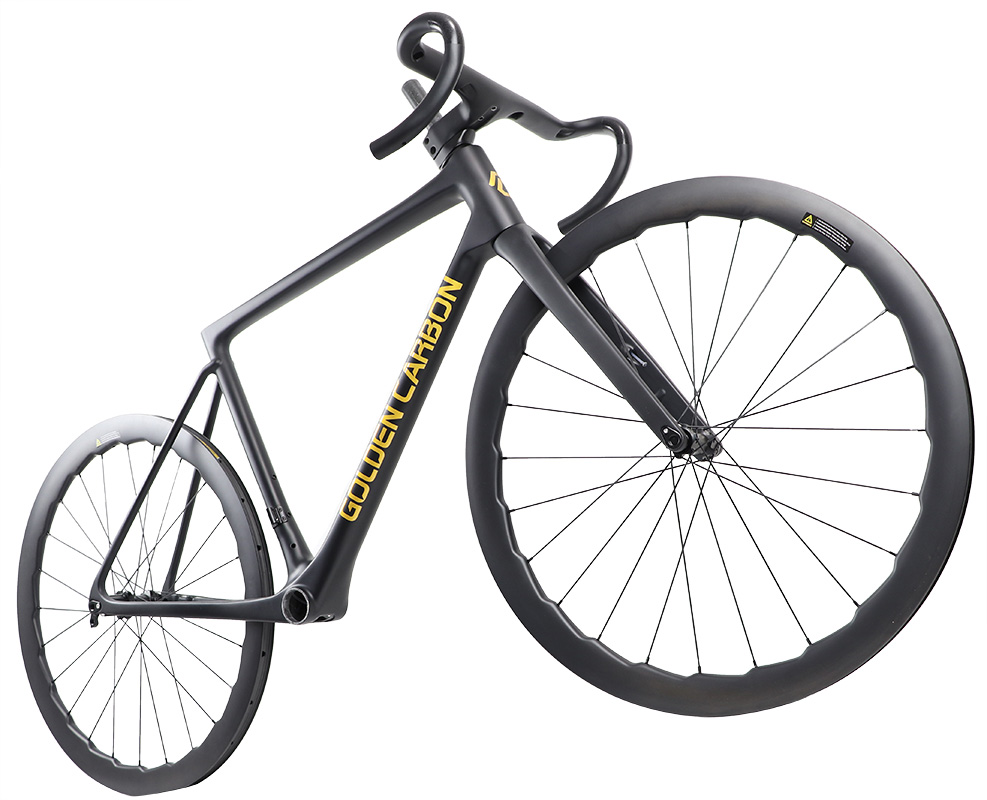

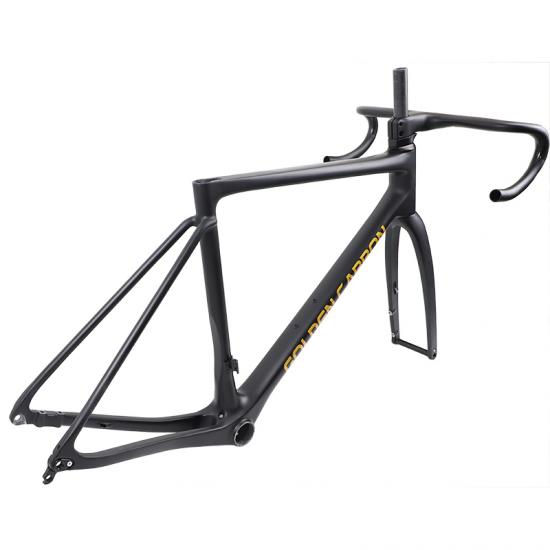

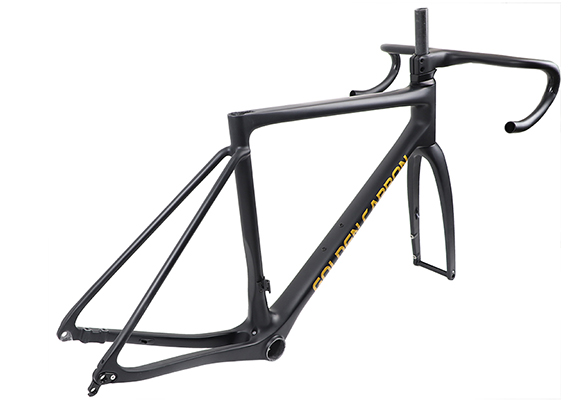

Disc BrakeLIGHTWEIGHT CARBON ROAD BIKE DISC BRAKE FRAME

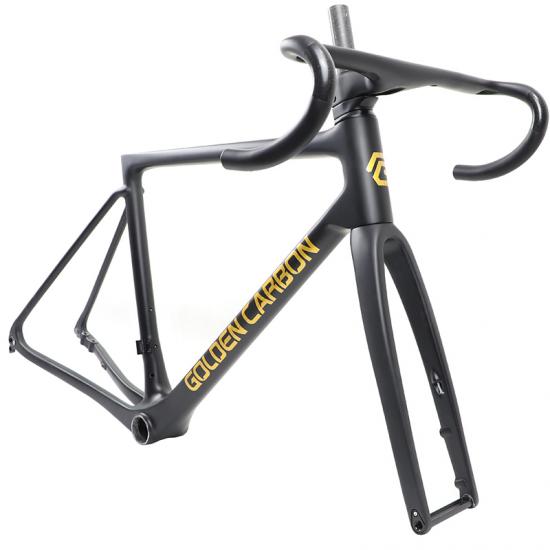

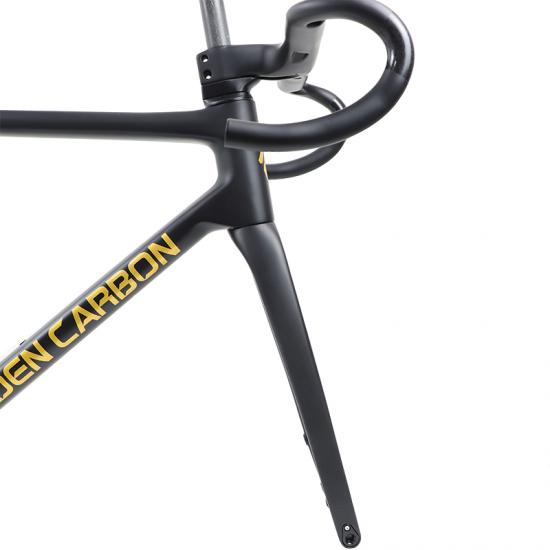

The upgraded head tube design matches the integrated aero handlebar (Model HBR06) design, whether DI2 or mechanical routing, the cable tube can be full hidde, making the frame look neater and reducing riding resistance.

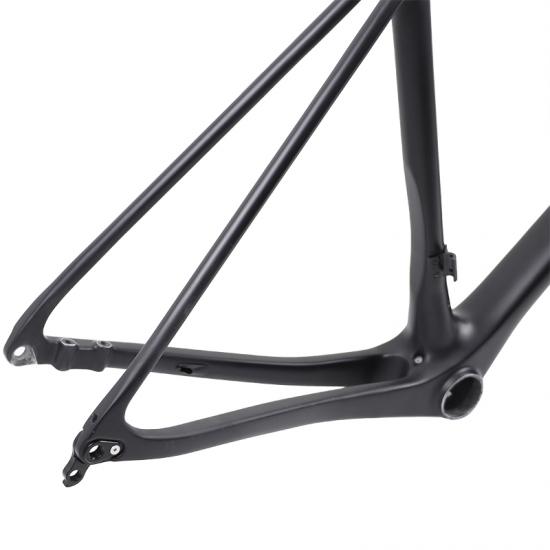

Compared with traditional air-bag moulding, EPS TECH makes the inside and outside of the frame even and smooth, helps to optimize the orthodromic and strength of carbon fiber, and avoid wrinkle inside , and improving the rigidity-weight ratio and strength of the frame
R938-D SPECIFICATION
| Model name | R938-D |
| Size | 420 / 450 / 480 / 515 / 550mm |
| Headtube | Tapered 1-1/2" / 1-1/2" (Compatible FSA ACR System) |
| Bottom bracket | BB386 |
| Fork | ORNAN specify carbon fork |
| Seat post | ∮27.2mm (SP06 or SP07 seat post optional) |
| Brake mount type | Flat mount Disc brake 140mm/160mm |
| Groupset | Machanical and Di2 compatible |
| Dropout | Front 12x100mm thru axle, Rear 12x142mm thru axle |
| Max tire | 700x30C |
| Material | High modulus Toray T700 and T800 carbon fiber |
| Weight | 920g+/-40g (Size: 480mm) |
| Feature | Full internal cable routing |
|
Test Standard |
ISO4210 |
|
Warranty |
2 years |

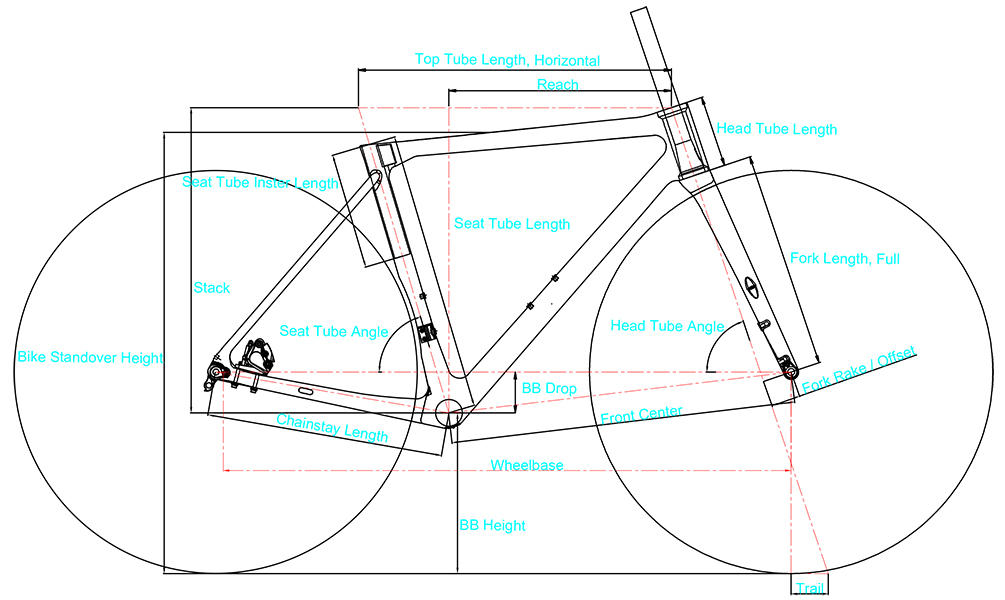

R938-D FRAME GEOMETRY
| SIZE | 420 | 450 | 480 | 515 | 550 |
| SEATPOST INSERT LENGTH | 225mm | 240mm | 270mm | 280mm | 280mm |
| SEAT TUBE LENGTH | 420mm | 450mm | 480mm | 515mm | 550mm |
| STACK | 520.5mm | 525.5mm | 541mm | 562mm | 583mm |
| REACH | 364mm | 373mm | 383mm | 389mm | 401mm |
| HEAD TUBE LENGTH | 120mm | 125mm | 140mm | 160mm | 180mm |
| HEAD TUBE ANGLE | 71° |
71° |
71.4° |
71.9° |
72.6° |
| BB HEIGHT (700x30C) | 276mm |
276mm |
276mm |
276mm |
276mm |
| BB DROP | 70mm |
70mm |
70mm |
70mm |
70mm |
| TOP TUBE LENGTH, HORIZONTAL | 508mm | 523mm | 540mm | 560mm | 585mm |
| SEAT TUBE ANGLE | 74.5° | 74° | 73.8° | 73° |
72.5° |
| CHAINSTAY LENGTH | 406mm | 406mm | 406mm | 408mm | 408mm |
| FRONT CENTER | 574mm | 584mm | 596mm | 604mm | 616.5mm |
| FORK LENGHT, FULL | 373mm |
373mm |
373mm |
373mm |
373mm |
| FORK RAKE/OFFSET | 48mm |
48mm |
48mm |
48mm |
48mm |
| BIKE STANDOVER HEIGHT (700x30C) | 720mm | 745mm | 775mm | 800mm | 825mm |
| TRAIL | 68.5mm | 67.7mm | 65.8mm | 62.6mm | 58.5mm |
| WHEELBASE | 970mm | 979.5mm | 992mm | 1002mm | 1014.5mm |

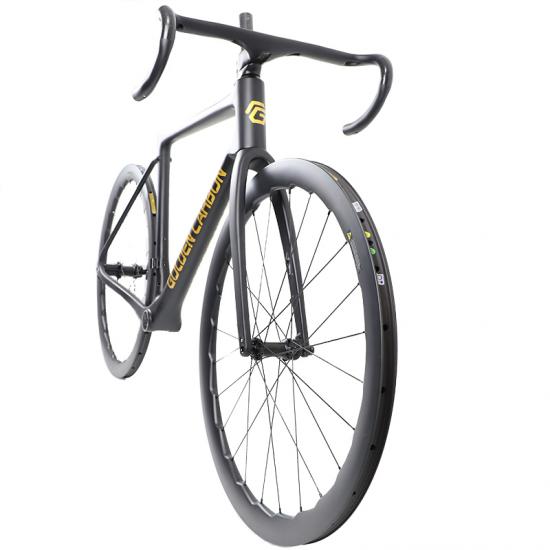

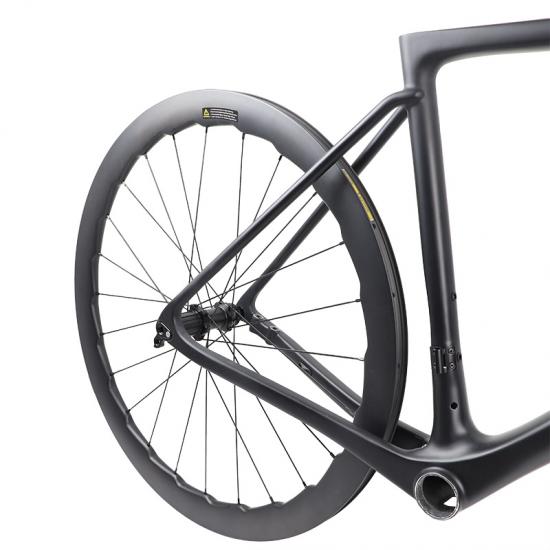

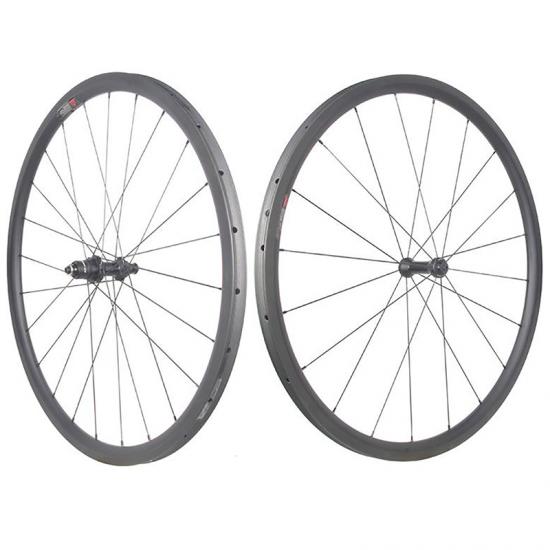

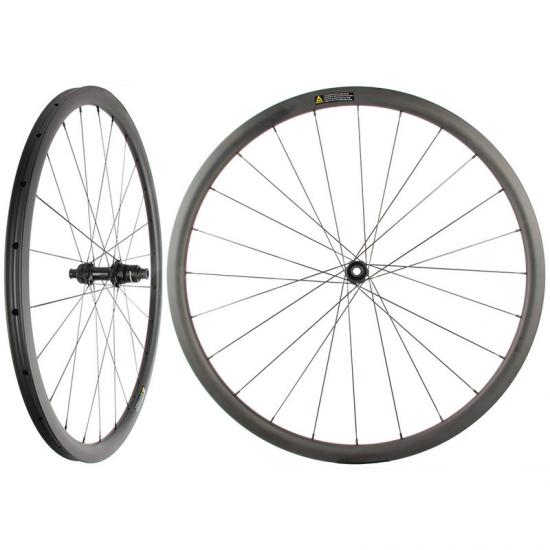

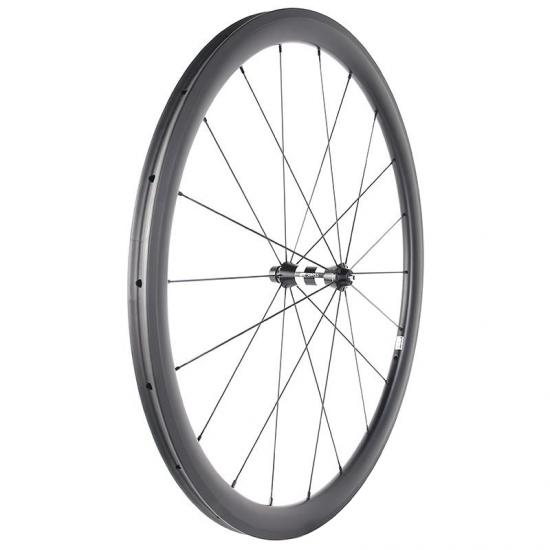

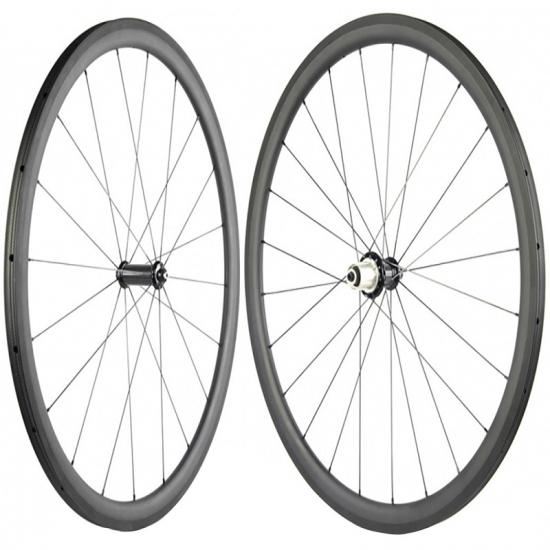

Lightweight carbon road 700C disc brake R938-D with Undulating carbon wheelset PRO-2650-D

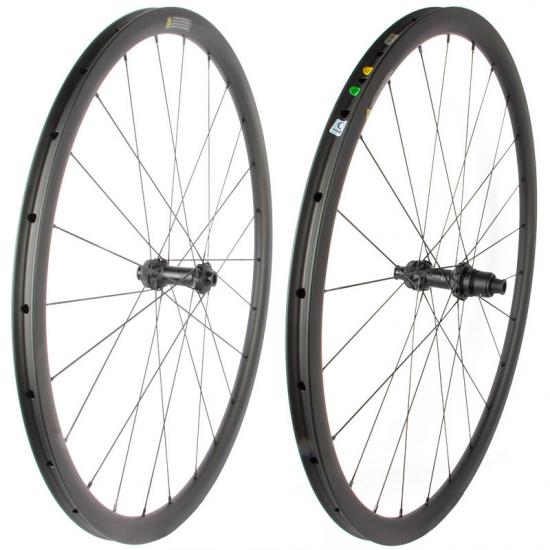

RIMS FOR EVERY CONDITION
